Our metal in-line fan is made of metal cover and metal impeller with quality motors, which provides singer phrase external rotor motor or brushless DC motor option. The printed metal design provides the features of rusty and dust protection and high temperature resistance. Due to the characteristic of dampen torque ripples of external rotor motor. the fan is able to operate at a stable and smooth range .For the brushless DC motor. the fan is driven by high efficient design, which helps for higher energy saving and more environmentally friendly. Both options provide a better performance on large air pressure and volume, low noise and long life. They are best selection of cooling ventilation for commercial and industrial applications.
1. All metal structure, pure copper motor, durable and long-lasting;
2. External rotor motor, stable performance, high wind pressure;
3. Low noise, stylish design;
Suitable for shopping malls, factory workshops, and other places.
| Model | Motor type | Power(W) | Rotation(RPM) | Air Volumn(m3/h) |

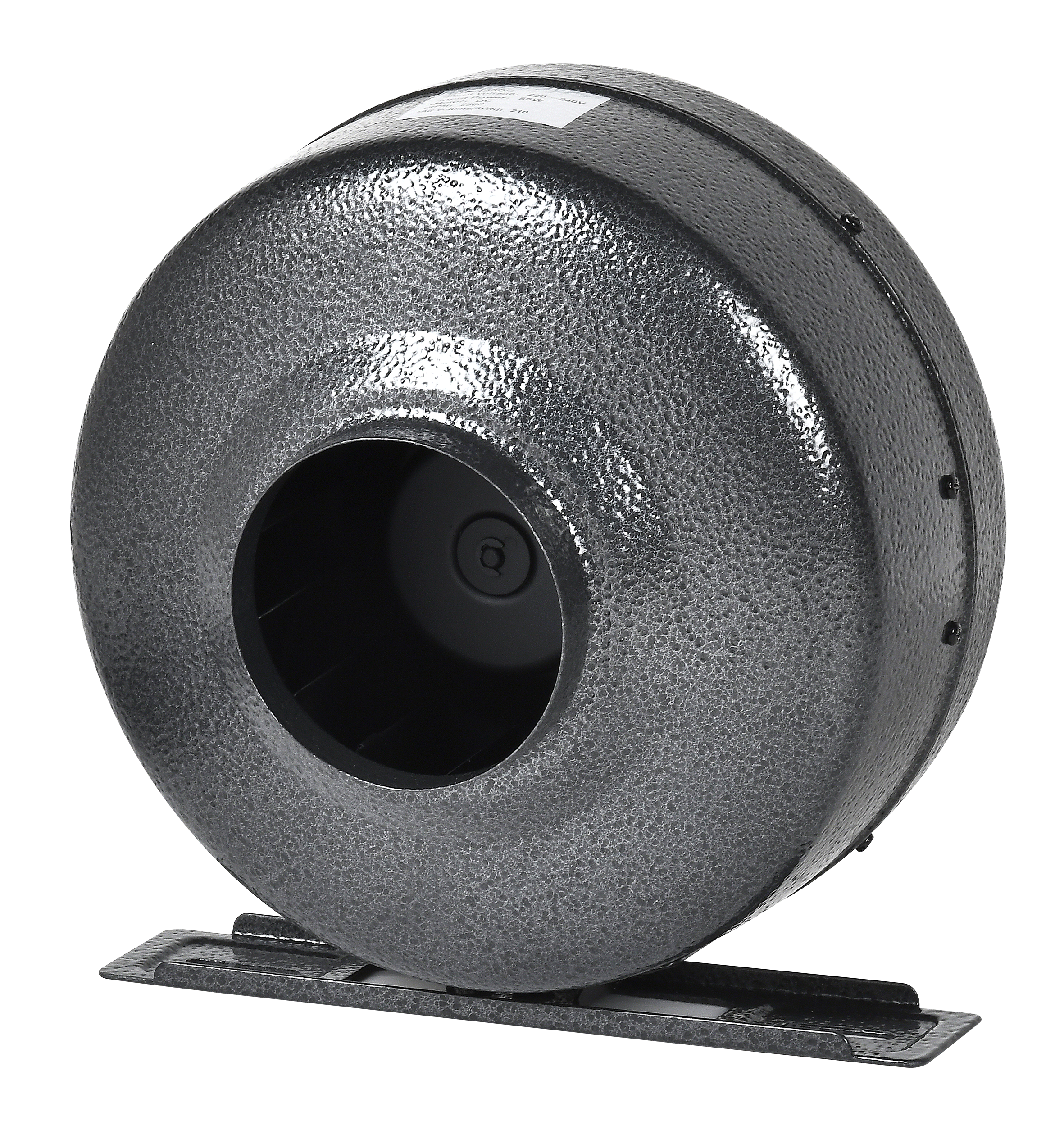

| GTF-100 | AC | 85 | 2450 | 238 |
| GTF-125 | AC | 90 | 2300 | 312 |
| GTF-150 | AC | 180 | 2500 | 725 |

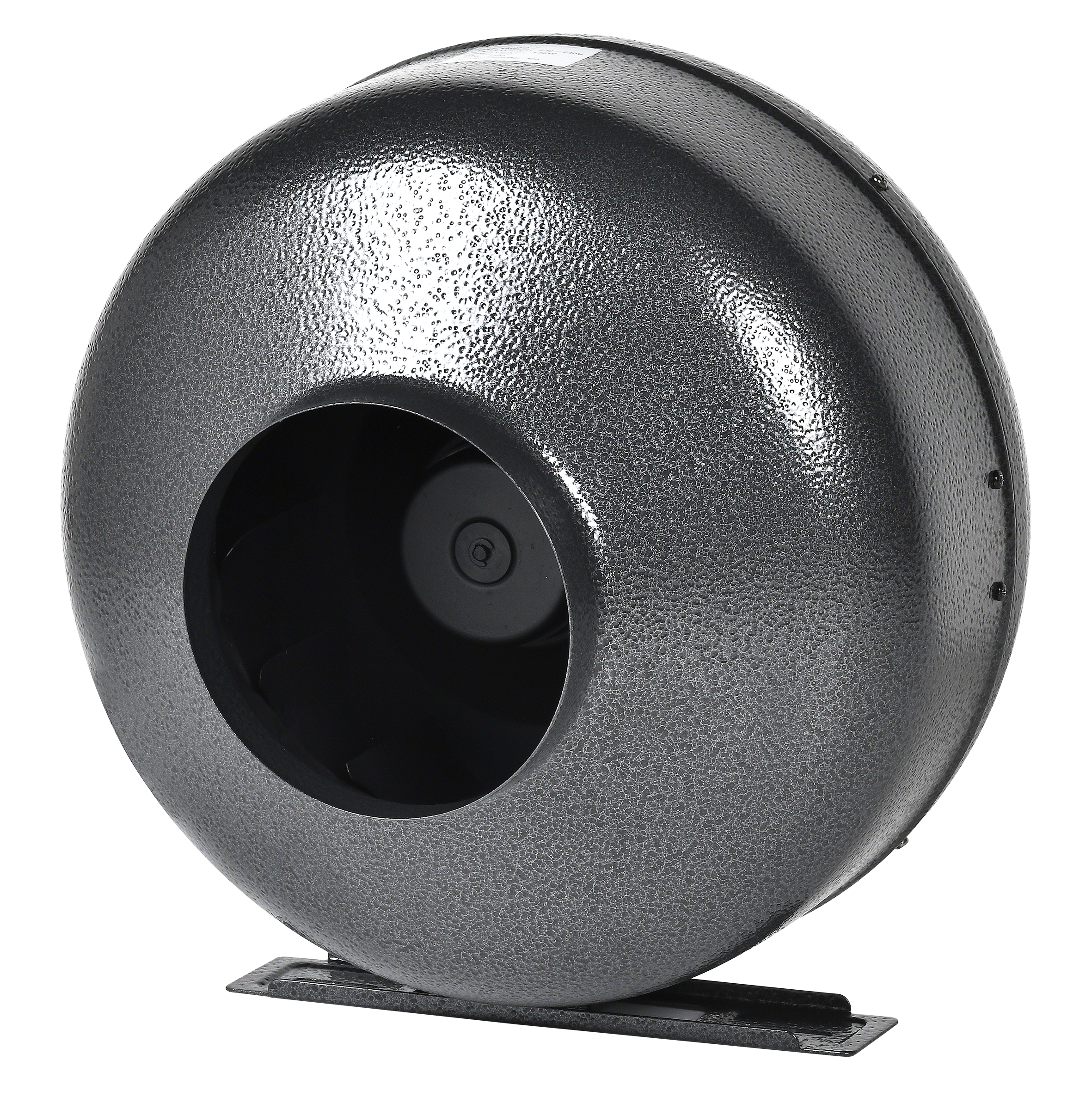

| GTF-160 | AC | 180 | 2500 | 725 |
| GTF-200 | AC | 165 | 2600 | 1020 |

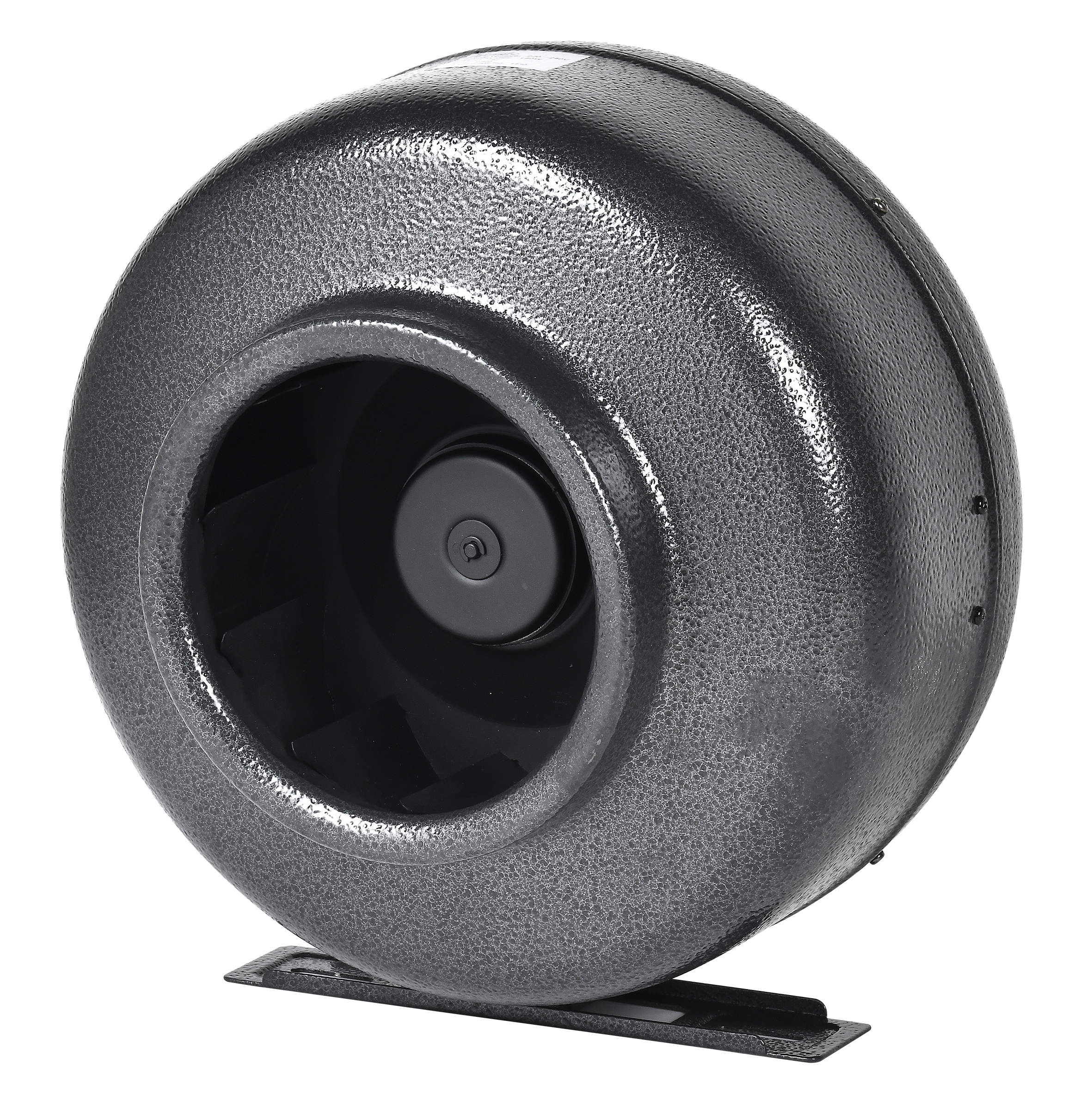

| GTF-250 | AC | 160 | 2600 | 1200 |

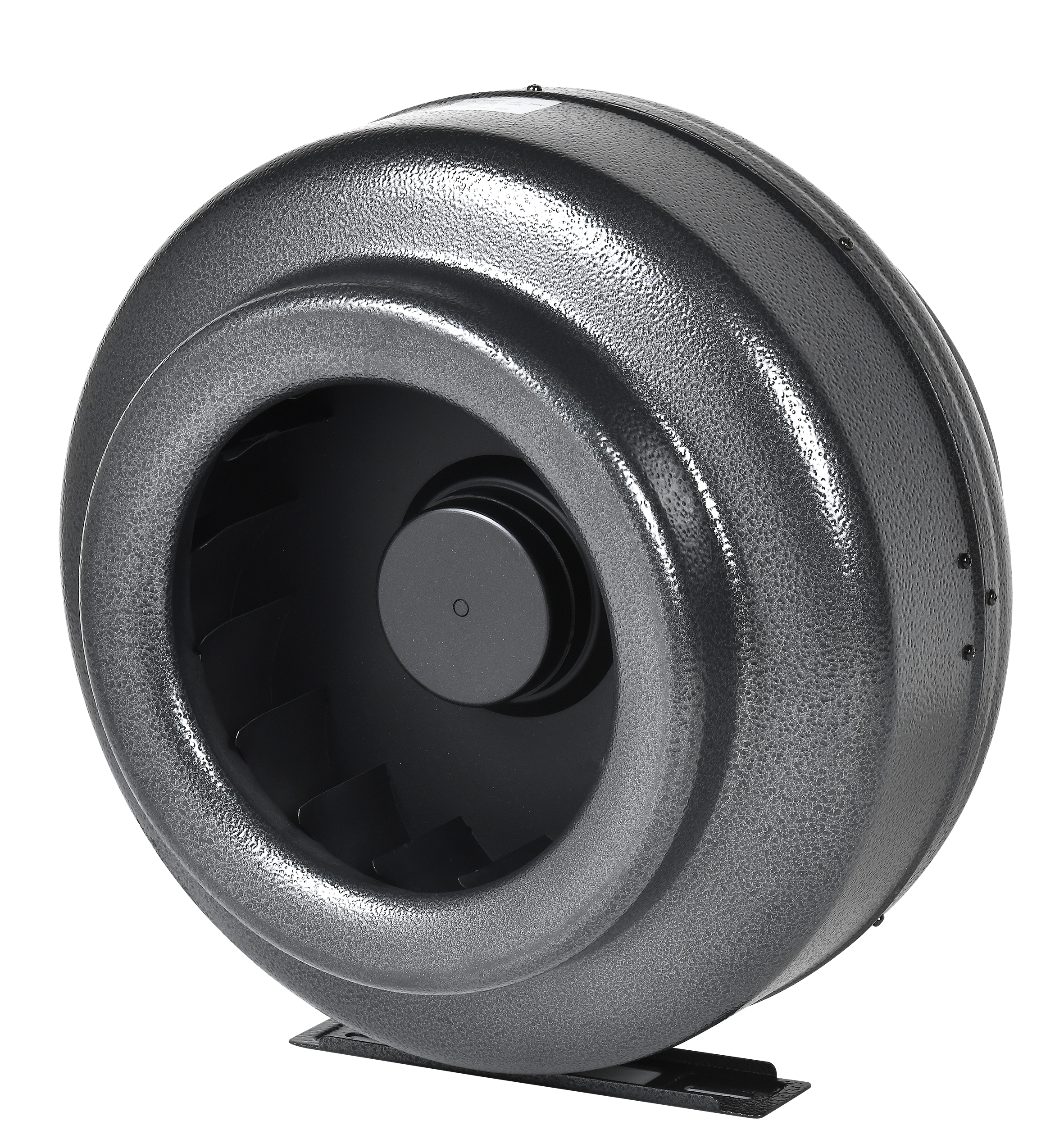

| GTF-315 | AC | 286 | 2578 | 1850 |
| GTF-100DC | DC | 55 | 2510 | 250 |
| GTF-200DC | DC | 101 | 2480 | 1080 |
| GTF-315DC | DC | 200 | 2340 | 1890 |
